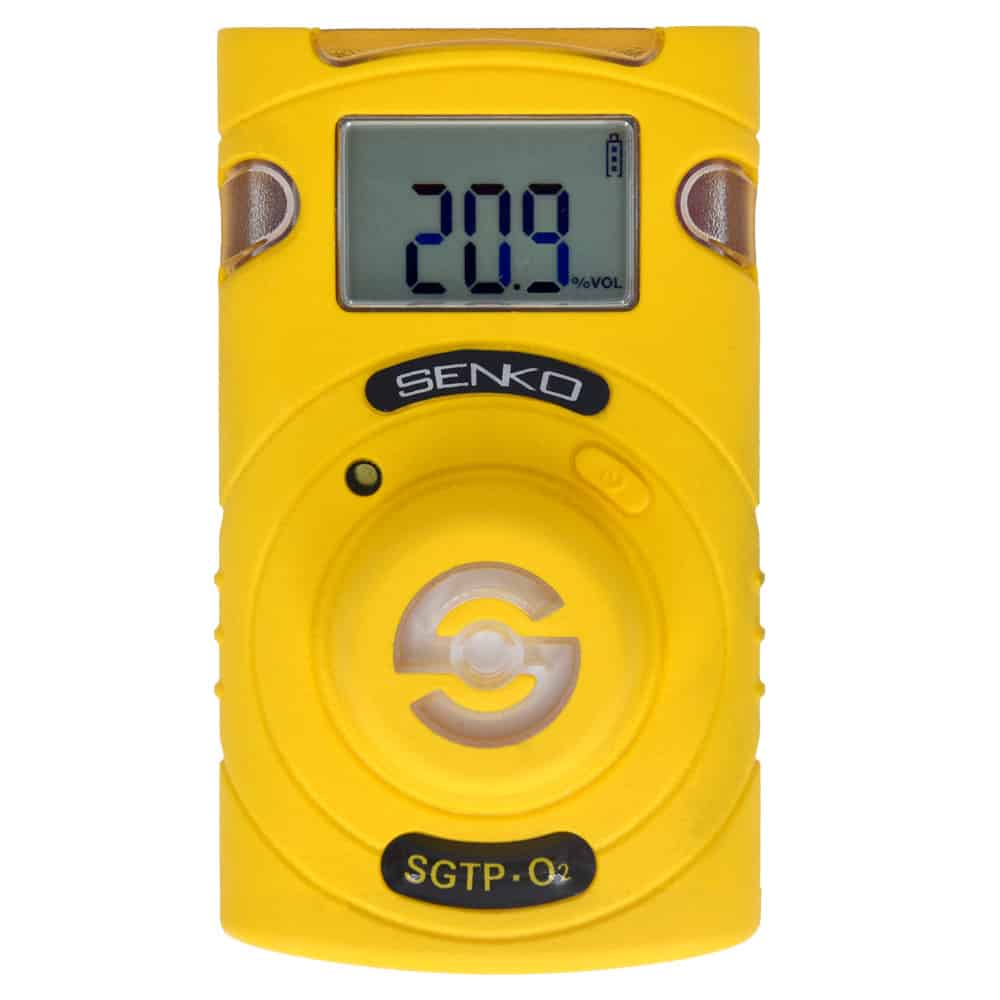

SGT-P Portable Gas Detector Oxygen (O₂) 0-30% vol. IECEx Approved
SGT-P is a single replaceable gas detector designed to detect oxygen deficiency and the presence of toxic gas in the ambient environment.
Need Assistance? 1300 432 937
SGT-P is a single replaceable gas detector designed to detect oxygen deficiency and the presence of toxic gas in the ambient environment. SGT-P is the replaceable type of gas sensor and battery. When activated, SGT-P continuously monitors ambient air for the presence of a specific gas and alerts the user to potentially unsafe exposure with LED, vibrating, and audible alarms in the event that gas concentration exceeds alarm set points
The SGT-P is designed to detect Hydrogen Sulphide (H₂S), Carbon Monoxide (CO), Ammonia (NH₃), Hydrogen (H₂), Sulphur dioxide (SO₂), or Oxygen (O₂). The SGT-P has a replaceable gas sensor and battery, giving an extended period of operation. When activated, SGT-P continuously monitors ambient air for the presence of a specific gas and alerts the user to potentially unsafe exposure with LED, vibrating, and audible alarms in the event that gas concentration exceeds alarm set points.
| Detectable Gas | Oxygen (O₂) |
|---|---|
| Detectable Gas Range | 0-30% vol. |
| Sensor Technology | Electrochemical Cell |
| Sensing Method | Diffusion |
| Potential Sensor Operating Life | > 2 year |
| Display Type | LCD Display (Back-light) |
| User Interface Type | Button |
| Internal Buzzer | Yes |
| Battery Life | 2 Years |
| Light Colour | Red |
| Dimension | 54 x 91 x 32 mm (W x H x D) |
| Weight | 93 g |
| Material Enclosure | Polycarbonate and rubber |
| Operating Temperature | -35°C to +50°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| IP Rating | IP66/IP67 |
| Certification | ATEX II 1G Ex ia IIC T4 Ga I ECEx Ex ia IIC T4 |
| Warranty | 2 Years |
