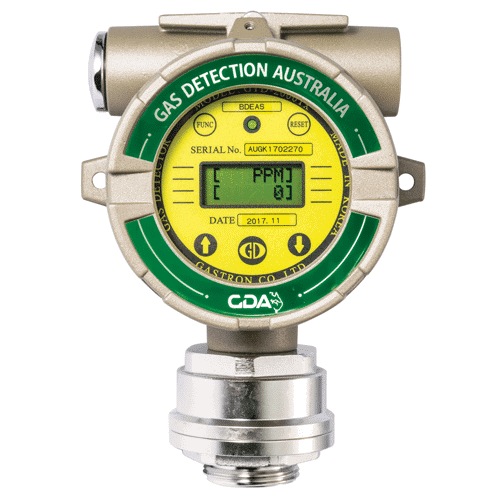

GTD-2000Tx IECEx Gas Detector Trimethyl Orthoformate (SAP01) (C4H10O3) 0-15 ppm
Flameproof gas detector for continuous toxic gas and oxygen monitoring, featuring self-diagnosis, high selectivity, TLV-level detection, HART communication, auto-calibration, and a 4-20mA output.
Need Assistance? 1300 432 937

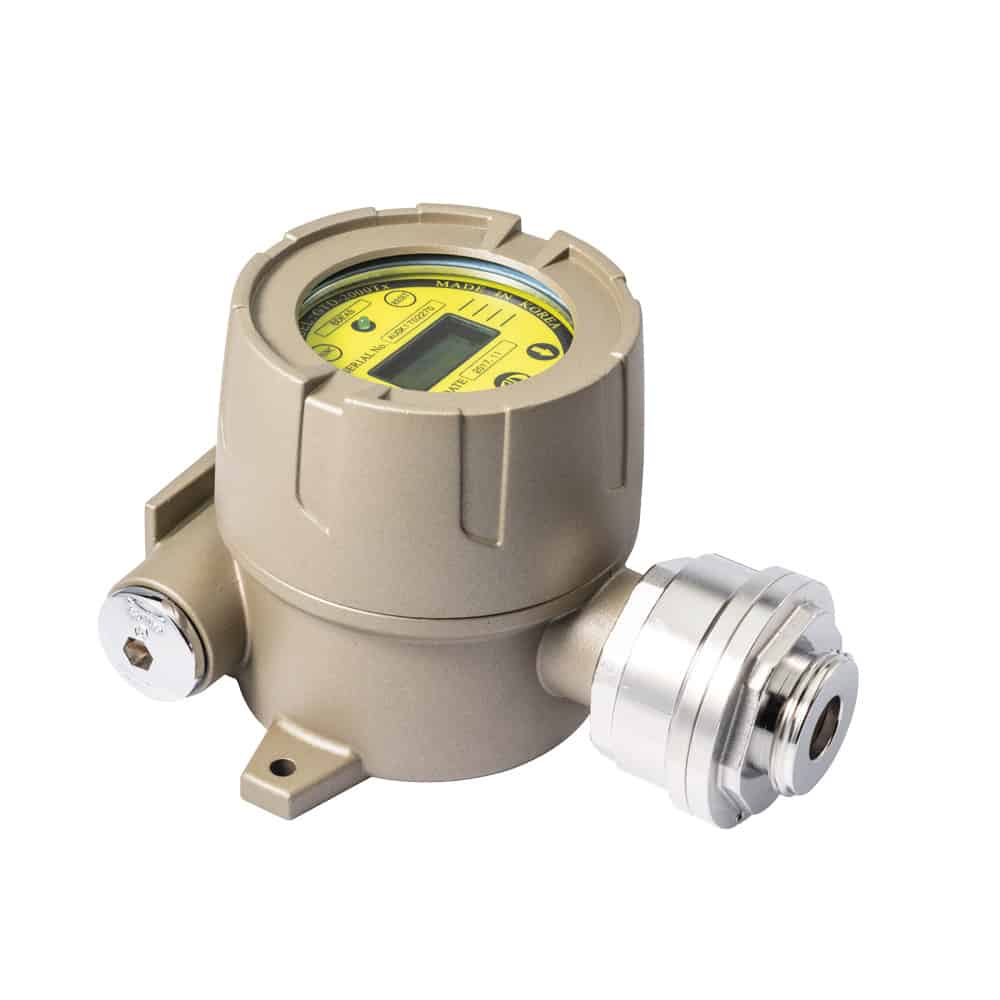

Meet our GTD-2000Tx Oxygen & Toxic Gas Detector IECEx, Trimethyl Orthoformate
The oxygen & toxic gas detector GTD-2000Tx is also known as a toxic gas alarm. It was developed to prevent accidents caused by toxic gases in hazardous spaces such as plants, toxic gas storage and factories. When this toxic gas detector is installed it will continuously monitor for a gas leak, display the data with the integrated LCD or OLED and supply a 4-20mA standard output. Moreover, the signal to the controller can be located up to 2,500 m away from the sensor part. (When using Cable CVVS or CVVSB 1.5sq above) This toxic gas detector GTD-2000Tx should be used below 1000M above sea level.
This toxic Trimethyl Orthoformate gas detector is made of aluminium and stainless steel and holds an IECEx rating. This toxic gas detector is installed in areas with combustible gas leaks and explosion hazards. It also comes with IECEx certification.
| Detectable Gas | Trimethyl Orthoformate (SAP01) (C4H10O3) |
|---|---|
| Sensor Technology | Electro-Chemical Cell, Photoionization detector(PID) |
| Sensing Method | Diffusion |
| Accuracy | ≤ ±3% / Full Range |
| Warm Up Time | 180 sec |
| Display Type | LCD |
| User Interface Type | Magnet-Bar, Function Buttons |
| Recommended Supply Voltage | 24 VDC (±10%) |
| Supply Voltage Range | 18 VDC to 32 VDC |
| Supply Power (Max.) | 3.6 W @ 24 VDC |
| Supply Current (Max.) | 150 mA @ 24 VDC |
| Outputs | 1x Analogue |
| Output Specifications | 4-20 mA (500 ohms max load) |
| Analogue Output Specifications | 4 – 20 mA |
| Digital Communications | HART Interface |
| Digital Output Specifications | HART REV7 (Option) |

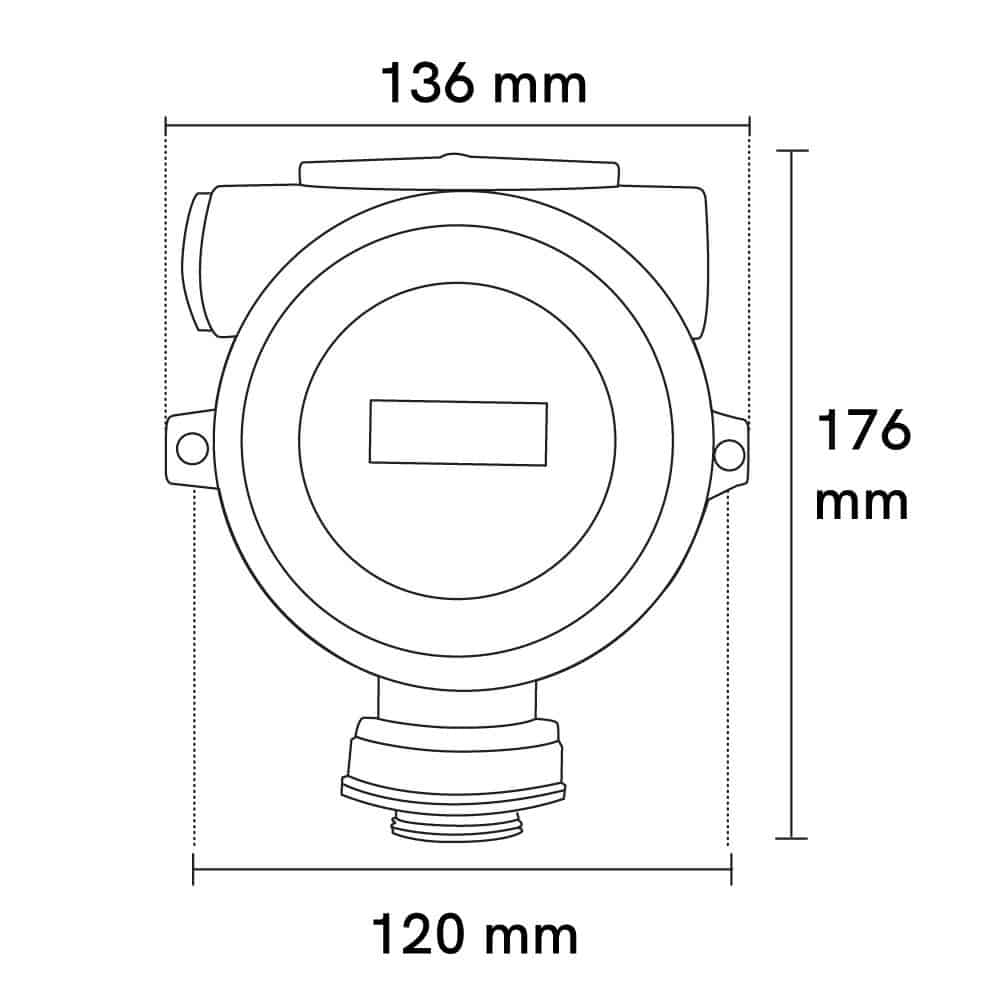

| Dimension | 136 x 176 x 110 mm (WxHxD) |
| Weight | App. 1.5 kg |
| Material Enclosure | Aluminum Alloy |
| Material Sensor | Stainless Steel (STS316) |
| Mounting | Wall mount |
| Cable Entry | 2 x 3/4" NPT |
| Operating Temperature | -40 to 80 °C |
| Storage Temperature | -40 to 80 °C |
| Operating Humidity | 5 to 99% RH (non-condensing) |
| Operating Pressure | 90 to 110 KPa |
| Max. Air Velocity | 6 m/s |
| IP Rating | IP65 |
| Certification | ATEX/IECEX: II 2 G, Ex db IIC Gb T4,T6 |
| Warranty | 2 Years |
| Sensor Warranty | 1 Year |
