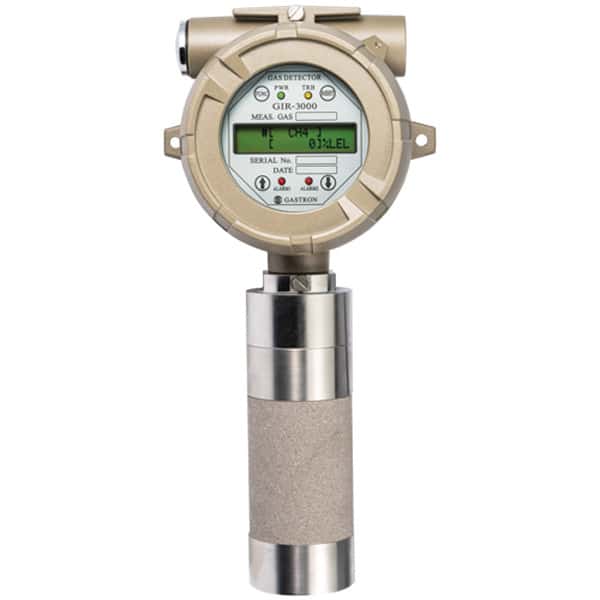

GIR-3000 IECEx Infrared Gas Detector Ethyl Lactate (C5H10O3) 0-100% LEL
Not quite sure?
Our expert team are here to help answer any questions you have and provide customised solutions. Send an enquiry today.
Continuous detection of flammable, CO2, CO and N2O gases in explosion hazardous area with flame proof structure
State-of-the art infrared detection principle
Long service life time (more than 5 years)
Operation in non oxygen environment
Self diagnosis function with built-in Microprocessor
Fast response time(<5 sec)
Built-in back light LCD or OLED display
Auto calibration and program setting with a magnet bar
2-stage alarm, 1-trouble display and relay contact output
4-20mA (Current source or Sink) output signal
Easy configuration of monitoring system by RS-485 Modbus or HART communication
Calibration and maintenance by one-man
With the alarm unit (GTL-100)
Normal : Green LED
Alarm : Red LED, Buzzer (95dB)
Trouble : Yellow LED
| Detectable Gas | Ethyl Lactate (C5H10O3) |
|---|---|
| Sensor Technology | Non-Dispersive Infrared(NDIR) |
| Sensing Method | Diffusion |
| Accuracy | ≤ ±3% / Full Range |
| Display Type | LCD |
| User Interface Type | Magnet-Bar, |
| Recommended Supply Voltage | 24 VDC (±10%) |
| Supply Voltage Range | 18 VDC to 31 VDC |
| Supply Power (Max.) | 9.6 W @ 24 VDC |
| Supply Current (Max.) | 400 mA @ 24 VDC |
| Outputs | 1 x Analogue, 3 x Digital |
| Output Specifications | 4-20 mA (500 ohms max load) |
| Analogue Output Specifications | 4 – 20 mA |
| Digital Communications | HART Interface |
| Digital Output Specifications | Alarm1, Alarm2, Fault Relay |
| Dimension | 156 × 322 × 110 mm (WxHxD) |
| Weight | App. 3.0 kg |
| Material Enclosure | Aluminum Alloy |
| Material Sensor | Stainless Steel (STS316) |
| Mounting | Wall mount |
| Cable Entry | 2 x 3/4" NPT |
| Operating Temperature | -40 to 80 °C |
| Storage Temperature | -40 to 80 °C |
| Operating Humidity | 5 to 99% RH (non-condensing) |
| Operating Pressure | 90 to 110 KPa |
| Max. Air Velocity | 6 m/s |
| IP Rating | IP65 |
| Certification | ATEX/IECEX: II 2 G, Ex db IIC Gb T4,T6 |
| Warranty | 2 Years |
| Sensor Warranty | 1 Year |
