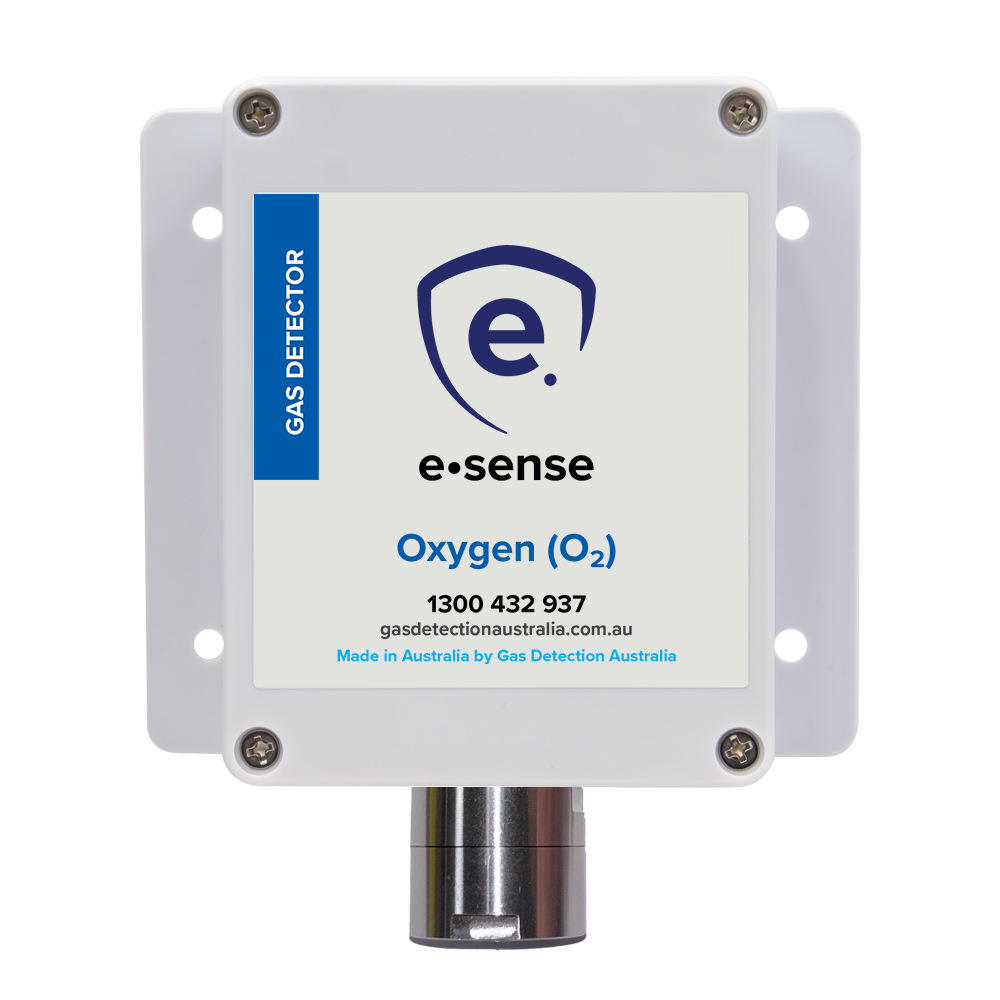

Meet our E-Sense Oxygen (O2) Electrochemical Gas Detector
E-Sense is our new signature range of the electrochemical gas detectors. This versatile unit boasts several great features including: 3 wire operation, ability in the 3 wire mode to be able to connect to either 4-20mA or 0-20mA controllers, it also boasts the ability to change the sensor detection range by half, other features are a test pot (gives the ability to test system wiring and alarms). Fine, course and span adjustment pots for a more accurate calibration, dedicated mA test points (for a single person calibration at the device). New brass design to allow’s you to have options when it comes to servicing, you can either replace the whole brass head or you can just replace the sensor element held within the brass. Replacing the sensor element will reduce your servicing costs, all while using this new design has helped us to create a more reliable sensor with a better IP (Ingress Protection) rating with the non-reactive gases that now include a titanium sintering that will give you an IP53 rating.
Detectable Gas | Oxygen (O2) |
---|---|
Detectable Gas Range | 0-25% vol. |
Measuring Units | % vol. |
Sensor Technology | Electrochemical |
Sensing Method | Diffusion |
Response Time (τ90) | < 5-10 sec |
Warm Up Time | 1 min |
Span Calibration Gas | 20.9% vol./N2 |
Zero Calibration Gas | N2 (5.0) |
Functional/Bump Test Gas | 18.0% vol./N2 |
Potential Sensor Operating Life | 2 Years |
Modes of Operation | 2/3 wire |
User Interface Type | Calibration/Test potentiometers |
Recommended Supply Voltage | 24 VDC |
Supply Current (Max.) | 25 mA @ 24 VDC |
Outputs | 1 x Analogue |
Output Specifications | 2-Wire Loop Powered 4-20 mA / 3-Wire 0/4-20 mA |
Analogue Output Specifications | 560 Ω @ 24 VDC / 830 Ω @ 24 VDC |
Dimension | 155 x 130 x 70 mm (H, W, D) (PTFE 145 mm H) |
Weight | 325 g (PTFE 260 g) |
Material Enclosure | ABS Plastic |
Material Sensor | Brass / PTFE |
Mounting | Wall Mount |
Mounting Height | Mid |
Cable Entry | User defined |
Operating Temperature | -30 to 50 °C |
Operating Humidity | 5% to 95% RH (non-condensing) |
Operating Pressure | 800 to 1200 mbar |
IP Rating Enclosure | IP56 |
IP Rating Sensor | IP53 |
Warranty | 12 Months |
Sensor Warranty | 12 Months |
